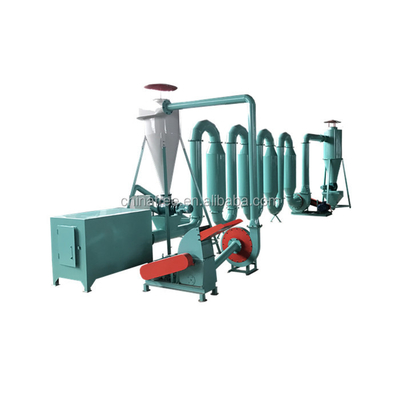

high efficiency reliable performa airstream dryer
Description:
This product is an ideal -production with small investment and fast profit.Low noise, low power consumption, easy to adjust,
For raw materials with heavy moisture content that above 12%, you need to install a drier, this drier reduces the moisture content below 12% before feeding them into Biomass / Charcoal Briquetting Screw Press
Features:
1, dry raw materials: rice hulls, sawdust and after smashing of the bubble flowers, branch, of wood and other granular materials (less than 3 mm in diameter and length less than 5 mm).
2, the production efficiency: hot air for 180 °C, relative humidity sawdust of 35% dry to relative to 10%.
The hot air temperature not below 180 °C, can be up to 300 °C.
3, fuel can choose: wood (broken wood), coal, steam or electrical heating.
Technology Parameter:
Model | FR-220 | FR-320 | FR-420 |
Capacity(kg/h) | 300-400 | 500-600 | 700-900 |
Diameter of material | < 3mm& <5mm | < 3mm& <5mm | < 3mm& <5mm |
Power(kw) | 5.5 | 11 | 15 |
Machine size | 10*1.0*2.8m | 15*1.0*2.8m | 21*1.2*2.85m |
Weight | 1200kg | 1600kg | 2200kg |
