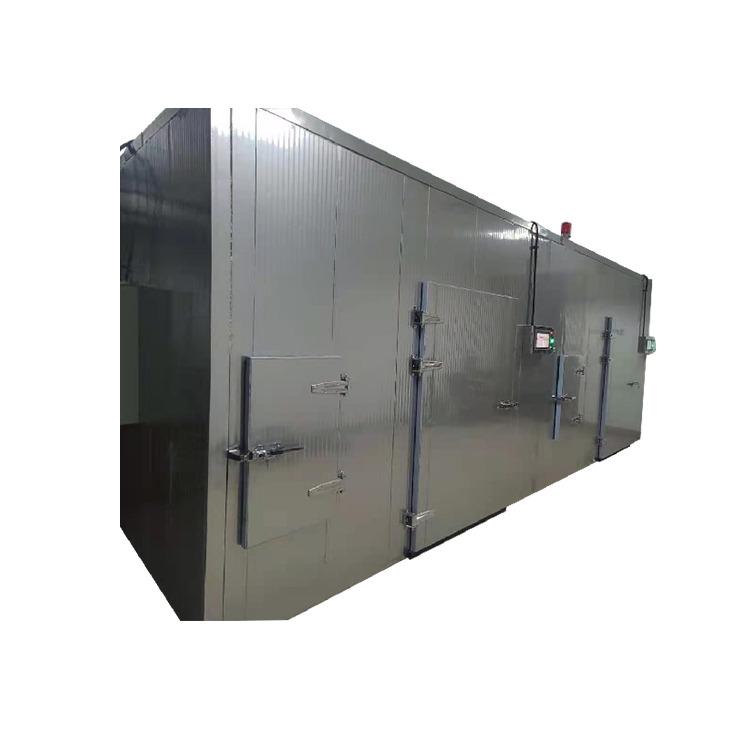

Hotels Food Dehydrator Fruit Powder Dryer Machine Dry Sweet Potato Drying Machine

1.0 set
MOQ
Hotels Food Dehydrator Fruit Powder Dryer Machine Dry Sweet Potato Drying Machine
풍모 갤러리 제품 설명 따옴표를 요구하십시오
풍모
제품 사양
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: Hot product 2022
Warranty of core components: 1 Year
Core Components: PLC, Motor, Pump
Condition: New
Type: Seafood drying machine
Voltage: 380v/220v/415v/customized
Power: 7P
Weight: 200 KG
Dimension(L*W*H): 5.6x3.2x2.1m
Warranty: 1 Year
Product name: fruit drying machine
Model: JDZN-WS-C/S-7
Material: Color steel/SUS
Circulating fan: 0.37KW*12Ssets
Exhuast fan: 0.55kw*1
Drying trolley: 6sets
Drying tray: 270pcs
Heat pump unit: 7P
Advantage: Energy-saving
Control system: PLC touch screen
기본 정보
Model Number: JDZN-WS-C/S-7
결제 및 배송 조건
Packaging Details: Plywood case
Supply Ability: 200 Set/Sets per Month
제품 설명
Products Description
Introduction : the heat pump drying machines are now the first choice among all kinds of drying equipment as energy efficient dryers. Its working principal is the same as the air conditioner
Dryer Advantage
1. Modular design
The equipment is composed of three parts: integrated host, combined house and fan wall, with reasonable structure and convenient assembly;
2. Intelligent control
PLC, touch screen, automatic temperature control, intelligent dehumidification, time control, process menu, mobile phone interconnection, fault alarm, emergency stop, status display, etc.；
3.Wide range of applications
According to the drying characteristics of different materials, we have designed six types of equipment with different structures, tailor-made, and recommend the best quality solutions for users.
4.Waste heat recovery:
after the equipment is dehumidified, it passes through the "sensible heat" and "latent heat" heat recovery devices respectively, so that the heat is fully utilized and the equipment is more energy-saving;
Machine structure & details
Structural features: All-in-one heat pump host not only recovers the hot and humid air discharged from the drying room, but also eliminates problems such as site waste; the equipment is a left and right circulation design structure, and the flat blowing bidirectional alternate cycle makes the material drying more uniform
Product Paramenters
Name of machine
Heat pump drying machine
Model
JDZN-WS-C/S-7
JDZN-WS-C/S-14
Material
Color steel/SUS
Color steel/SUS
Size
5.6×3.2×2.1m
7.4×3.2×2.1m
Heat pump
7P
14P
Circulation fan
0.37KW×12Ssets
0.55KW×12Ssets
Exhuast fan
0.55kw×1
0.55kw×1
Trolley quantity
6sets
10sets
Tray quantity
270pcs
450pcs
Loading capacity
500kg or so
1000kg or so
Machine site display
Application material
Remark:
Different material is suitable for different structure drying machines, welcome to contact us to share us with you material information(such as material name &drying capacity per batch), we will recommend or customize the most suitable dryer for you.
Company Profile
FAQ
Q1. Are you a manufacturer? Yes, we are professional manufacturer of drying machines ＆other processing machines in China
Q2. How long the machine can be delivered?
Usually, it needs 20-30 days for production
Q3. What is the after-sales service?
We provide one year warranty and all-life technical support.
Q4.Whether the machine can be customized ?
Yes,we can customize this machine as per user's requirement.
